AD Connect Sync Plus enables you to monitor disk storage limits, Microsoft SQL Server database size limits, and CPU and RAM usage on the control server, and when these limits exceed specified thresholds, the system generates alerts and displays warnings on the dashboard, ensuring proactive management and maintaining optimal performance.

Database and Disk Health

To monitor database storage and disk health, click Monitoring >> Database and Disk Health.

• Current Status:
  • Disk: This displays the space consumed by the AD Connect Sync installation drive on the portal server (control server)
  • Database: This shows the space consumed by the SQL Server database.
  • Database Logs: This shows the space consumed by the database logs.
• Notification:
  • Notify when: Notify the admin through an email when the disk size, database, or database logs reach a certain threshold
  • Reaches: Specify the threshold limit in GBs. When the disk, database, or database logs reach this limit, a notification email will be sent
  • Notify to: Enter the email address to which the email notification should be sent by the system when the threshold is reached. If no email is specified here,  the threshold notification will be sent to the email address listed in the admin profile.

Services Health

AD Connect Sync Plus also enables you to monitor CPU and RAM usage of the control server. If resource usage exceeds the defined threshold, the system automatically sends email notifications to the administrator or to a specified email address.

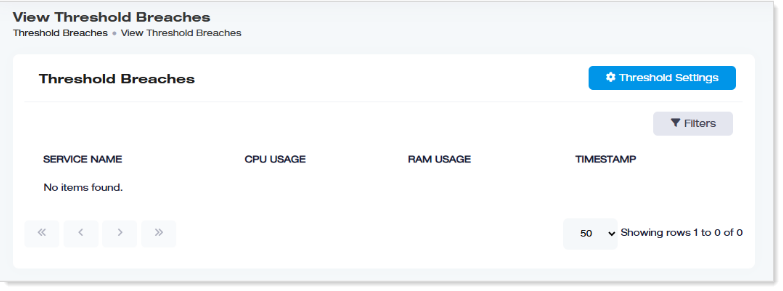

To monitor other services, click Monitoring >> Services Health.

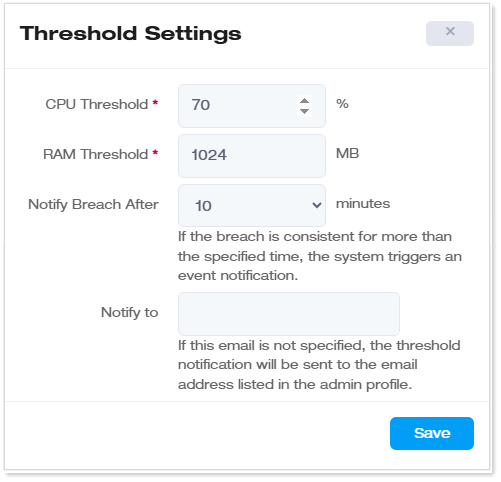

Threshold Settings

To specify threshold settings, click Threshold Settings.

• CPU Threshold: Specify CPU threshold value.
• RAM Threshold: Specify RAM threshold value.
• Notify Breach After: Select after how much time the notification should be send.
• Notify to: Enter the email address to which the alert email is sent by the system when the threshold is exceeded.
